Description
Key Features of Reinwent’s Razor Wire Clips
- Robust & Secure Connection: Provides a strong, tamper-resistant fastening point for connecting adjacent loops of spiral concertina razor wire, or for attaching razor wire to fences and support wires, significantly enhancing barrier strength.
- Corrosion-Resistant Materials: Manufactured from high-quality galvanized steel for excellent outdoor durability. Stainless steel options (e.g., AISI 304, AISI 316) are available for superior corrosion resistance in harsh coastal or industrial environments.
- Universal Compatibility: Designed to be fully compatible with both Spiral Concertina Razor Wire and Flat Wrap Razor Wire systems.
- Optimized for Tool Use: Can be efficiently applied using our manual Razor Wire Clip Tool for precision, or with compatible pneumatic/battery-powered C-ring or hog ring guns (when using C-rings as an alternative or in conjunction). Note: These clips are distinct from C-rings but often used in similar toolsets.
- Efficient Logistics: Compact and stackable design allows for high-density bulk packing, simplifying storage and international logistics for large-scale projects.
- Long-Term Holding Power: Engineered to maintain a secure grip and resist dislodgement under tension, wind load, and attempted tampering, ensuring the long-term integrity of the razor wire barrier.
Detailed Technical Specifications for Razor Wire Clips
| Feature | Details |
|---|---|
| Product Name | Razor Wire Clips (Concertina Clips) |
| Primary Use | Securing loops of concertina razor wire; attaching razor wire to structures. |
| Material Options | 1. Hot-Dip Galvanized Steel (Standard) 2. Stainless Steel (AISI 304, AISI 316 – on request) |
| Typical Dimensions (L x W x Thickness) | Example: Approx. 17.5mm x 11mm x 1.0-1.5mm (0.69” x 0.43” x 0.04”-0.06”) – *Varies by clip type and wire gauge compatibility.* |
| Clips per Coil (Recommended) | 3, 5, or 7 clips per spiral connection point, depending on coil diameter and desired security level. |
| Standard Packaging | Typically 10,000 pcs per carton (other quantities available). |
| Approximate Carton Weight | ~25 – 32 kg (55 – 70 lbs), varies by clip size and material. |
| Tool Compatibility | Manual Razor Wire Clip Pliers, Pneumatic Clip Guns. (Note: Distinct from C-Ring tools but sometimes C-rings are used supplementarily). |
Razor Wire Clips: Compatible Systems & Installation Guidelines
Reinvent’s high-strength razor wire clips are integral components for creating robust and reliable razor wire barriers. They are primarily used for:

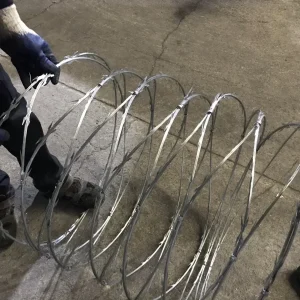

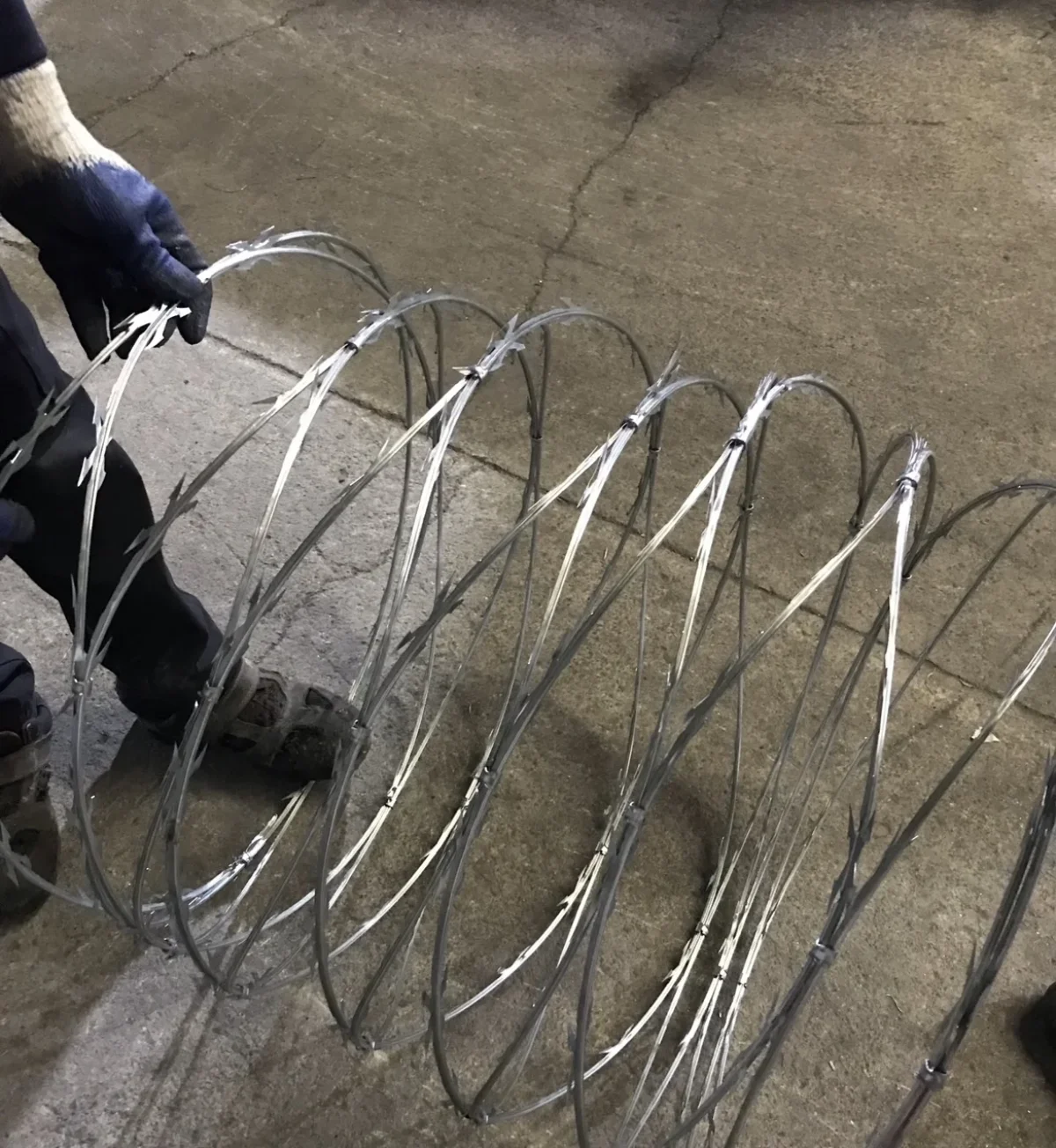

- Securing Concertina Coils: Fastening adjacent loops of spiral concertina razor wire together at designated crossover points (typically 3, 5, or 7 clips per point) to form its characteristic, formidable structure.
- Attaching Flat Wrap Panels: Securing flat wrap razor wire panels firmly to existing fences (chain-link, welded mesh), walls, or support wires.
- Reinforcing Multi-Layer Barriers: Used in the construction of multi-layer or stacked razor wire obstacles for enhanced security depth.
- Repair & Maintenance: Essential for repairing damaged sections of existing razor wire installations.
Installation Best Practices:
Proper application of razor wire clips is crucial for the barrier’s effectiveness and longevity:
- Tool Selection: Use appropriate tools such as dedicated manual razor wire clip pliers for secure crimping. For larger installations, pneumatic clip tools can significantly increase speed. While sometimes C-rings (applied with a Battery C-Ring Tool) are used for similar purposes, dedicated razor wire clips are often designed for a specific type of closure.
- Clip Spacing: Follow recommended spacing guidelines for clipping concertina spirals or attaching flat wrap to ensure uniform strength and prevent sagging or weak points.
- Safety First: Always use heavy-duty, puncture-resistant gloves and appropriate PPE when handling razor wire and clips.
Common Use Cases for Razor Wire Clips
Our durable razor wire clips are essential for professional security installations across a variety of high-risk environments worldwide:
- International Border Fences: Ensuring the structural integrity of long stretches of razor wire barriers at national borders.
- Military Perimeter Security: Used in securing perimeters around military bases, depots, and sensitive operational zones.
- Correctional Facilities: Critical for maintaining the robust structure of anti-escape fencing in prisons and detention centers.
- Critical Infrastructure Protection: Securing oil refineries, power stations, communication hubs, airports, and seaports.
- Industrial & Commercial Security: Reinforcing perimeter fencing for factories, warehouses, and high-value commercial properties.
- High-Security Government & Diplomatic Enclosures: Used in creating secure perimeters for embassies and sensitive government buildings.
Why Choose Reinvent’s High-Performance Razor Wire Clips?
Reinvent’s razor wire clips are engineered to meet the rigorous demands of modern perimeter security projects. Choosing our clips offers several key advantages:
- Maximum Grip Strength: Precision manufactured to deliver a tight, secure closure that firmly holds razor wire strands without damaging the core wire or compromising the blade’s integrity.
- Enhanced Durability: Made from high-quality galvanized steel (with stainless steel options) to provide excellent corrosion resistance and withstand harsh outdoor conditions for a long service life.
- Optimized for Efficiency: Designed for quick and easy application with standard razor wire clip tools, reducing installation time and labor costs.
- Reliable Performance: Our clips are manufactured under strict quality control standards to ensure consistent performance and prevent detachment or structural failure under stress.
- Bulk Availability & Global Logistics: We offer razor wire clips in bulk packaging (e.g., 10,000 pcs per carton) suitable for large-scale projects and efficient international shipping.
For a dependable and lasting razor wire installation, trust Reinwent clips to provide the secure connections your perimeter security system demands.
Secure Your Razor Wire Installations with Reinwent Clips
Looking for reliable, industrial-grade clips to fasten your concertina or flat wrap razor wire? Reinwent’s Razor Wire Clips are trusted by security contractors and military suppliers worldwide for their superior strength, durability, and ease of use with compatible installation tools.
Ensure the integrity of your security barrier.
__
Need installation tools? Check out our Razor Wire Clip Tool and compatible powered C-Ring applicators.
Razor Wire Clips – Frequently Asked Questions (FAQ)
How many razor wire clips are typically needed for a standard roll of concertina wire?
The number of clips required depends on the coil diameter and the desired level of security. Typically, 3 to 5 clips are used at each point where adjacent spirals of a concertina coil are connected. For a standard roll with 55–56 spirals, this can mean approximately 170–280 clips to form the concertina structure itself, plus additional clips for attaching the coil to support wires or fences.
What tools are compatible with Reinwent Razor Wire Clips?
Our razor wire clips are designed for use with specialized manual razor wire clip pliers (or crimping tools) that securely close the clip around the wire. Some types of pneumatic or battery-powered fencing clip guns may also be compatible, depending on the clip design. Please verify tool compatibility for optimal performance. (Note: While C-Rings are also used in fencing, dedicated razor wire clips often have a different profile for a more secure grip on razor tape.)
Are these clips rust-proof and suitable for long-term outdoor exposure?
Yes. Our standard razor wire clips are manufactured from hot-dip galvanized steel, providing a robust zinc coating that offers excellent protection against rust and corrosion in typical outdoor conditions. For extremely harsh or coastal environments, stainless steel clip options can be supplied upon request for maximum longevity.
Can I purchase razor wire clips in bulk quantities for large projects or government supply contracts?
Absolutely. Reinwent specializes in supplying industrial and project-scale quantities. Our razor wire clips are typically packaged in cartons of 10,000 pieces, optimized for export and efficient handling in large-scale procurement and government supply contracts. We can accommodate various volume requirements.
Are razor wire clips reusable?
No, razor wire clips are designed to provide a permanent, tamper-resistant fastening. Once correctly applied and crimped, they are not intended for removal and reuse, as this would compromise their holding strength and the security of the installation.
